71 Bo-Bo

**Class Types**
Pre-Tops Class	HA
TOPS Class	71

General

Year Introduced

1958

Wheel Arrangement

Bo-Bo

Manufacturers

Manufacturer	Total
Doncaster Works	24

Number Built

Number Range (as built)

E5000-E5023

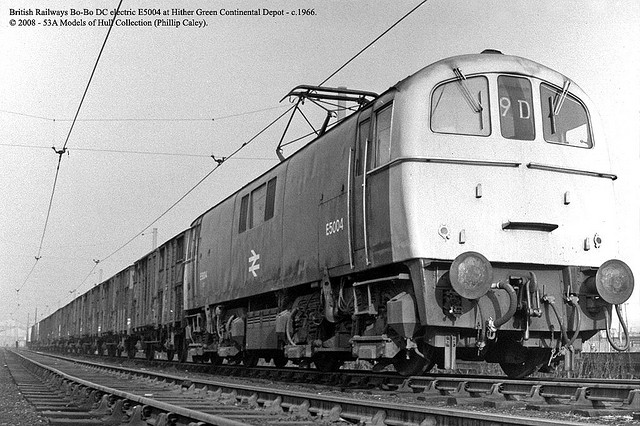

**Illustration**

Copyright: 53A Models ()

**Miscellaneous**
Maximum Speed	90mph
Number Built	24
Number Range (as built)	E5000-E5023

**Dimensions**
Wheel Diameter	4'
Length	50' 7"
Height	13' 1"
Width	9' 3¹⁄₄"
Wheelbase	37' 6"
Bogie Wheelbase	10' 6"
Bogie Pivot Centres	27'

**Power**
Tractive Effort	43,000lbs
Horse Power	2552hp

**Transmission**
Transmission Type	Electric
Traction Motor Number	4
Traction Motor Type	English Electric EE532

**Heating**
Heating Type	Electric
