LMS "0F" Class 0-4-0ST

General

Introduced

1932

Grouping Company

London, Midland & Scottish Railway

Wheel Arrangement

0-4-0ST

Number Built as 0F

First in Service

11/1932

Last in Service

12/1966

Manufacturers

Manufacturer	Total
Horwich Works	5
Kitson	5

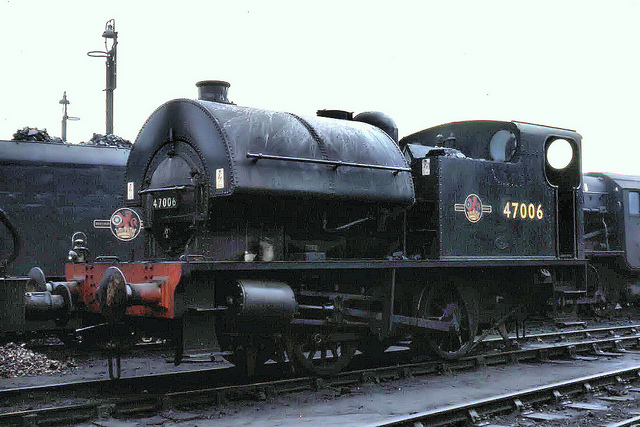

**Illustration**

Copyright: Unknown - please contact me if you know the copyright holder

**Power**
	0F/LMS	0F/BR
Variant Introduced	1932	1953
Tractive Effort	14,205lbs	As 0F/LMS
Outside Cylinders	15.5" x 20" (2 off)	As 0F/LMS

**Wheels**
	0F/LMS	0F/BR
Drivers	3' 10"	As 0F/LMS
Total Wheelbase	7' 5"	As 0F/LMS
Descriptive Wheelbase	7' 5"	As 0F/LMS

**Dimensions**
	0F/LMS	0F/BR
Length (over buffers)	26' 4¹⁄₄"	As 0F/LMS
Weight (in running order)	33t 0cwt	34t 16cwt
Water Capacity	800gal	As 0F/LMS
Coal Capacity	1t 0cwt	2t 0cwt

**Boiler & Firebox**
	0F/LMS	0F/BR
Boiler Diagram	J3	As 0F/LMS
Boiler Pressure	160lbs	As 0F/LMS
Firebox Grate Area	11.75ft²	As 0F/LMS
Firebox Heating Surface	57ft²	As 0F/LMS
Tube Area	603ft²	As 0F/LMS
Total Heating Area	660ft²	As 0F/LMS
