GER/LNER Holden "J14" Class 0-6-0

**Class Types**
GER Class	N31
LNER Class	J14

General

Designer

James Holden

Introduced

1893

Pre-Grouping Company

Great Eastern Railway

Grouping Company

London and North Eastern Railway

Wheel Arrangement

0-6-0

Number Built as J14

Number Scrapped

Number Preserved

First in Service

01/1893

Last in Service

04/1925

Manufacturers

Manufacturer	Total
Stratford Works	81

Orders

Builder	Sponsor	Order #	Date	Size
Stratford Works		E34	1893	10
Stratford Works		G42	1893	10
Stratford Works		H33	1893	10
Stratford Works		H40	1893	10
Stratford Works		K43	1893	10
Stratford Works		L33	1893	10
Stratford Works		N31	1893	1
Stratford Works		N37	1893	10
Stratford Works		O41	1893	10

Engine Diagrams

Diagram	Details
Section E, 1924	Heating surface 1164.7 sq. ft., 2,640 gallon tender

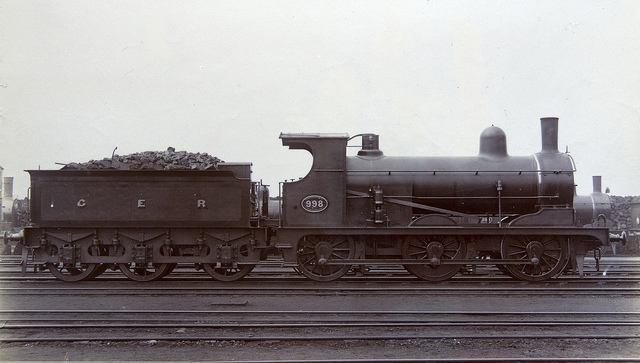

**Illustration**

Copyright: Tony Hisgett

**Power**
Variant Introduced	1893
Tractive Effort	16,942lbs
Inside Cylinders	17.5" x 24" (2 off)
Inside Valves	Slide
Inside Motion	Stephenson

**Wheels**
Drivers	4' 11"
Locomotive Wheelbase	16' 1"
Tender Wheelbase	12'
Total Wheelbase	35' 5"
Descriptive Wheelbase	7' 7" + 8' 6" + 7' 4" + 6' 6" + 5' 6" = 35' 5"

**Dimensions**
Length (over buffers)	47' 3"
Weight (in running order)	69t 12cwt
Weight (loco only)	38t 19cwt
Adhesive Weight	38t 19cwt
Maximum Axle Load	14t 8cwt
Water Capacity	2,640gal
Coal Capacity	5t 0cwt

**Boiler & Firebox**
Boiler Diagram	32
Boiler Max Diameter	4' 4"
Boiler Barrel Length	10'
Boiler Pressure	160lbs
Boiler Pitch	7' 6"
Firebox Type	Round Top
Firebox Length	6'
Firebox Grate Area	18ft²
Firebox Heating Surface	100.9ft²
Tube Number	242
Tube Diameter	1⁵⁄₈"
Tube Area	1063.8ft²
Total Evaporative Area	1164.7ft²
Total Heating Area	1164.7ft²
