NBR/LNER "Y9" Class 0-4-0ST


Class Types
NBR Class G
LNER Class Y9

General
Introduced 1882
Pre-Grouping Company North British Railway
Grouping Company London and North Eastern Railway
Description (1957) Class Y9. North British 3'8" 0-4-0ST's, originally a class of 38 engines built 1882-99. Thirty-three were still running in 1948 and of these 14 were withdrawn between 1953 and 1955.
Wheel Arrangement 0-4-0ST
Number Built as Y9 38
Number Scrapped 37
Number Preserved 1
Last in Service 29/12/1962
Manufacturers
ManufacturerTotal
Cowlairs Works 36
Neilson, Reid & Co. 2
Orders
BuilderSponsorOrder #DateSize
Neilson, Reid & Co.  549 1882 2
Cowlairs Works  n/a 1887 6
Cowlairs Works  n/a 1889 6
Cowlairs Works  n/a 11/1890 6
Cowlairs Works  n/a 01/1891 6
Cowlairs Works  n/a 11/1897 6
Cowlairs Works  n/a 06/1899 6
Historical Data The first two engines were Neilson standard design 0-4-0ST. They proved to be ideal for dock work due to their short wheelbase, resulting in 6 batches of 6 engines being built at the NBR's own works at Cowlairs. They also found work in small industrial yards throughout the NBR system at places such as Dundee.
They were reboilered from 1913 onwards and from 1920 onwards, a number of engines were fitted with a steam brake, replacing the hand brake they were built with.

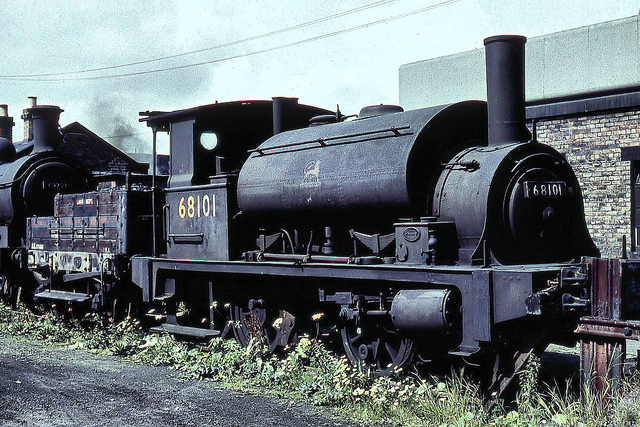

Illustration
Copyright: Unknown - please contact me if you know the copyright holder
Power
Variant Introduced 1882
Tractive Effort 9,845lbs
Outside Cylinders 14" x 20" (2 off)
Outside Valves Slide
Outside Motion Stephenson

Wheels
Drivers 3' 8"
Total Wheelbase 7'
Descriptive Wheelbase 7' 0"

Dimensions
Length (over buffers) 23' 83⁄4"
Weight (in running order) 27t 16cwt
Adhesive Weight 27t 16cwt
Maximum Axle Load 14t 3cwt
Water Capacity 720gal
Coal Capacity 0t 18cwt

Boiler & Firebox
Boiler Diagram 85
Boiler Max Diameter 3' 95⁄8"
Boiler Barrel Length 10' 43⁄8"
Boiler Pressure 130lbs
Boiler Pitch 5' 41⁄2"
Firebox Type Round Top
Firebox Length 3' 6"
Firebox Grate Area 10ft2
Firebox Heating Surface 49ft2
Tube Number 150
Tube Diameter 13⁄4"
Tube Area 739ft2
Total Evaporative Area 788ft2
Total Heating Area 788ft2
