LNWR/LMS Webb "1P" Class 2-4-2T


Class Types
LMS Class 1P

General
Designer Francis Webb
Introduced 1890
Pre-Grouping Company London and North Western Railway
Grouping Company London, Midland & Scottish Railway
Wheel Arrangement 2-4-2T
Number Built as 1P 160
Number Scrapped 157
Number Preserved 0
First in Service 09/1890
Last in Service 09/1955
Manufacturers
ManufacturerTotal
Crewe Works 160
Orders
BuilderSponsorOrder #DateSize
Crewe Works  n/a 09/1890 20
Crewe Works  n/a 11/1891 30
Crewe Works  n/a 05/1893 50
Crewe Works  n/a 06/1894 10
Crewe Works  n/a 02/1895 10
Crewe Works  n/a 03/1895 20
Crewe Works  n/a 04/1897 20

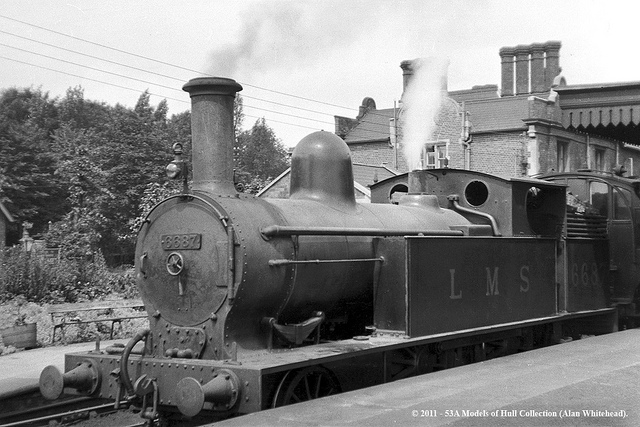

Illustration
Copyright: 53A Models
Power
Variant Introduced 1890
Inside Cylinders 17" x 24" (2 off)
Inside Motion 2

Wheels
Pony 3' 9"
Drivers 5' 6"
Truck 3' 9"
Locomotive Wheelbase 22' 5"
Descriptive Wheelbase 7' 5" + 8' 3" + 6' 9" = 22' 5"

Dimensions
Weight (loco only) 51t 0cwt

Boiler & Firebox
Boiler Diagram Precursor
Boiler Notes As fitted to Webb 2-4-0 Precursor class
Boiler Max Diameter 4' 2"
Boiler Barrel Length 9' 10"
Boiler Pressure 120lbs
Total Heating Area 1074.6ft2
